SNMG120408R,Brazing Carbide Teeth Inserts , Square Lathe Carbide Cutting Tools

Ask Lasest Price
Brand Name :	VKD
Model Number :	SNMG120408R
Price :	negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	One million films a month
Delivery Time :	15-30 working days
Certification :	ISO9001:2008; GB/T19001-2008

Add to Cart

Product Details
Company Profile

SNMG120408R,Brazing Carbide Teeth Inserts , Square Lathe Carbide Cutting Tools

Brazing Carbide Teeth Inserts , Square Lathe Carbide Cutting Tools

Carbide Teeth Inserts Specifications

Carbide Teeth Inserts are the general name for indexable turning inserts and are the mainstream products in modern metal cutting applications. Mainly used in metal turning, milling, cutting and grooving, thread turning and other fields.
CNC inserts are mainly used in metal turning, milling, cutting and grooving, thread turning and other fields. According to the material can be divided into coated blades, cermet blades, non-metallic ceramic blades, carbide blades, super hard blades and so on. It is characterized by high efficiency and high wear resistance, which is more than 4 times more efficient than traditional welding inserts and alloy inserts. With the continuous advancement of coating technology, breakthroughs in key technologies of wear resistance and high temperature resistance will further improve efficiency and reduce processing costs.

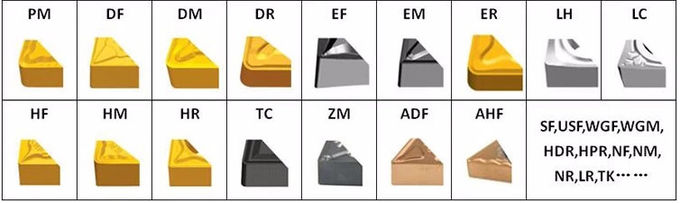

Chip breaker System

Wear Resistance Tungsten Carbide Inserts Golden / Black Color 100% Virgin Raw Material

NO	Chip Breaker	Introduction	Competitor (Chip Breaker)
1	PM	Double sided chip breaker for medium machining. Wide range of application in steel and cast iron.	(PM)
2	DF	Double sided chip breaker with good chip control. Suitable for finishing and medium machining of steel and cast iron.	(-PF), SECO(-MF1)
3	DM	Double sided chip breaker for medium machining. Wide range of application due to excellent balance of sharpness and cutting edge stability.	(PM), SECO(MF2), KYOCERA(HQ)
4	DR	Double sided chip breaker with positive rake angle and stable cutting edge for light to medium roughing of steel and cast iron.	(PR,QR)
5	EF	Double sided chip breaker with good chip control. Suitable for finishing and medium machining of steel and cast iron.	KYOCERA(-CF)
6	EM	Double sided chip breaker with sharp cutting edge and large rake angle. Process reliable medium machining of stainless steel.	TUNGALOY(TM)
7	ER	Double sided chip breaker with large rake angle for low cutting forces. Suitable for roughing of stainless steel.	(MR,QR)
8	LH	Single sided chipbreaker for machining of cast aluminium alloys. Sharp cutting edge with positive rake angle. G-tolerance for high repeatability.	KORLOY(AR)
9	LC	Single sided chip breaker with excellent cutting edge design. Sharp cutting edge with positive rake angle. G-tolerance for	KORLOY(AK)
10	HF	Single sided chip breaker with good chip control. Suitable for finishing to medium machining of steel and cast iron.	MITSUBISHI (FJ,FV), KYOCERA(CF)

No.	Grade	Grade description	Grade(Competitors)
1	YBC152	CVD coated P10–P20 carbide grade for finishing to medium operation of steel and casting steel. Outstanding performance under higher cutting speed and temperature with excellent wear resistance.	GC4315(), E6020(MITSUBISHI), T9125(TUNGALOY)
2	YB6315	CVD coating grade combining nano dioxygen gradient transition techniques and crystal nucleus pre-insertion techniques.	GC4315(), T9115(TUNGALOY)
3	YBC252	CVD coated P20–P35 carbide grade for medium operation to roughing of steel and casting steel. Optimal performance of wear resistance and toughness for a wide application field.	GC4325(),E6020(MITSUBISHI),T9125(TUNGALOY)
4	YBD102	CVD coated K05–K20 carbide substrate. Optimized for medium operation of cast iron, special nodular cast iron and hard steel at high cutting speed.	UC5115(MITSUBISHI)
5	YBD152	CVD coated K10–K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Good wear resistance and toughness at higher cutting speed.	UC5115(MITSUBISHI)
6	YBD152C	Thick Al2O3 CVD coated K05–K25 carbide substrate. Optimized for medium to roughing operation of cast iron.Higher wear resistance and toughness at higher cutting speed in combination with TC chip breaker.	UC5115(MITSUBISHI)
7	YB7315	CVD coated K10–K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Improved wear resistance and toughness at high cutting speed.	UC5115(MITSUBISHI), WAK20()
8	YBM153	CVD coated M10–M25 carbide grade for fnishing to medium application in stainless steel. High wear resistance and capability against plasctic deformation at higher cutting speed.
9	YBM253	CVD coated M15–M35 carbide grade for medium to roughing operation in stainless steel with wide application field. High wear resistance and capability against plasctic deformation at higher cutting speed.
10	YBG202	PVD coated M10–M25/P10–P30 carbide substrate for finishing to medium application of stainless steel and steel (milling). Good wear resistance in a wide application field.
11	YBG205	PVD multilayer coated M20–M40/S15–S25/P10–P30 carbide substrate for finishing to medium application of stainless steel, super alloy and steel (milling). Good wear resistance and thermal stability in a wide application field.	VP15TF(MITSUBISHI)

Full Specification

CCMT	SCMW	SECN	TEEN	VNMA	ODEW	DHD
CCMW	SCGW	SEGN	TECN	VBMW	XEEN	MP
CNMA	SNMA	SNGA	TEEW	VCMW	EDR	G25
CCGW	SNGN	TPGH	TECW	VNMG	SDR	ADEW
CNMN	SNMN	TCGW	RNMN	VNMP	DED	TEEW
CPMN	SPMN	TPGN	RNGN	VPGA	DGD	SDEN
DCGW	SPGN	TNMA	REEN	VPGR	DFD	SEEN
DNMA	SPCN	TEHW	RCMN	WNMA	... ..
