Brand Name : | VKD |
Price : | negotiation |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | One million films a month |
Delivery Time : | 7-30 working days |

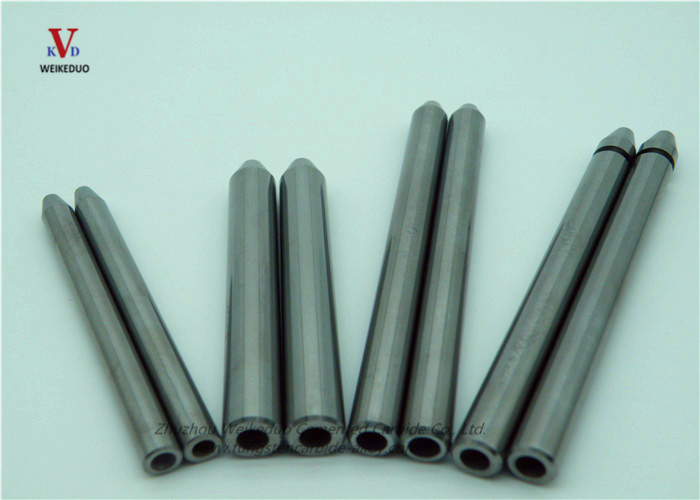

Straight Tungsten Carbide Blasting Nozzle , Carbide Jet Hose
Nozzle
Tungsten Carbide Blasting Nozzle Introduction
Water jet nozzle is used for cutting stone,glass,plastic,metal so
on hard material.
Tungsten Carbide Blasting Nozzle spcifications:
Life: 150-300 hours refers to the general statistical time under
350 Mpa working pressure. The service life of sand mixing pipe is
determined not only by its own quality, but also by many factors,
such as working pressure, water column, abrasive (pomegranate
sand), knife head structure design and some human factors. Among
them, the influence of water column on the life of sand mixing pipe
is most easily ignored in practical application. water
Tungsten Carbide Blasting Nozzle application:
• Abrasive Waterjet
• Dry Blasting
• Mirco Abrasive
• Scrubber
• Descaling
• Slurry Jet
• Spray Drying
•Centrifuge
Parameters
NO. | model | ΦD(mm) | Φd1(mm) | L(mm) | θ° | а° |
1 | 6.35*1.02*76.2 | 6.35 | 1.02 | 76.2 | 40 | 28 |
2 | 6.35*0.76*76.2 | 6.35 | 0.76 | 76.2 | 40 | 28 |
3 | 6.35*0.91*76.2 | 6.35 | 0.91 | 76.2 | 40 | 28 |
4 | 6.35*1.02*101.6 | 6.35 | 1.02 | 101.6 | 40 | 28 |
5 | 6.35*0.76*101.6 | 6.35 | 0.76 | 101.6 | 40 | 28 |
6 | 7.14*1.02*76.2 | 7.14 | 1.02 | 76.2 | 40 | 28 |
7 | 7.14*0.76*76.2 | 7.14 | 0.76 | 76.2 | 40 | 28 |
8 | 7.14*0.91*76.2 | 7.14 | 0.91 | 76.2 | 40 | 28 |
9 | 9.45*1.02*76.2 | 9.45 | 1.02 | 76.2 | 40 | 28 |
10 | 9.45*0.76*76.2 | 9.45 | 0.76 | 76.2 | 40 | 28 |
11 | 9.43*1.02*76.2 | 9.43 | 1.02 | 76.2 | 40 | 28 |
12 | 9.43*0.76*76.2 | 9.43 | 0.76 | 76.2 | 40 | 28 |
13 | 9.45*1.02*79 | 9.45 | 1.02 | 79.0 | 40 | 28 |
14 | 9.45*0.76*79 | 9.45 | 0.76 | 79.0 | 40 | 28 |
15 | 9.45*1.02*101.6 | 9.45 | 1.02 | 101.6 | 40 | 28 |
16 | 9.45*0.76*101.6 | 9.45 | 0.76 | 101.6 | 40 | 28 |
17 | 9.45*1.02*120 | 9.45 | 1.02 | 120.0 | 40 | 28 |
18 | 9.45*0.76*120 | 9.45 | 0.76 | 120.0 | 40 | 28 |
19 | 7.14*1.02*101.6 | 7.14 | 1.02 | 101.6 | 40 | 28 |
20 | 7.14*0.76*101.6 | 7.14 | 0.76 | 101.6 | 40 | 28 |
21 | 7.14*0.89*101.6 | 7.14 | 0.89 | 101.6 | 40 | 28 |
22 | 7.14*0.91*101.6 | 7.14 | 0.91 | 101.6 | 40 | 28 |
23 | 7.14*1.02*120 | 7.14 | 1.02 | 120.0 | 40 | 28 |
24 | 7.14*0.76*120 | 7.14 | 0.76 | 120.0 | 40 | 28 |
25 | 8.0*1.02*101.6 | 8.00 | 1.02 | 101.6 | 40 | 28 |
26 | 8.0*0.76*101.6 Grooved sand pipe | 8.00 | 0.76 | 101.6 | 40 | 28 |
