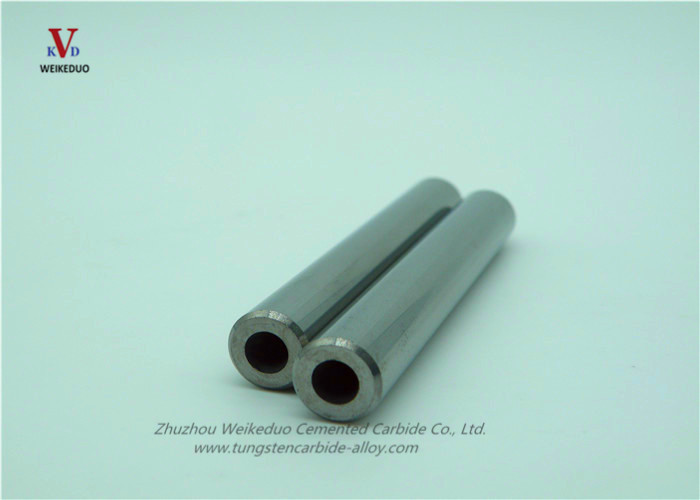

    Straight Bore And Venture Bore Tungsten Carbide Nozzle For Abrasive Water Jet

    Ask Lasest Price
    Brand Name : VKD
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : One million films a month
    Delivery Time : 7-30 working days
    • Product Details
    • Company Profile

    Straight Bore And Venture Bore Tungsten Carbide Nozzle For Abrasive Water Jet

    Straight Bore And Venture Bore Tungsten Carbide Nozzle For Abrasive Water Jet


    Tungsten Carbide Nozzle Description


    Our tungsten carbide waterjet nozzles inner tube is high finish blast hole, and the use of our unique polishing technology pores to keep the hardness of inside waterjet nozzles is same as the outside of water jet nozzles. Comparing to other common tungsten water jet nozzles:higher hardness, higher density, higher wear resistance, higher stability.Consistent and long service life.


    Tungsten Carbide Nozzle spcifications:


    Use superfine nanometer tungsten carbide particles, the wear-resisting performance to the next level, superior
    wear resistance makes it far beyond the ordinary tungsten carbide,The service life of the nozzle.Cobalt
    content of less than 0.6%, density of 15.45 g/cm3 ~ 15.6 g/cm3, bending 2000 mpa to 2400MPa.Super oxygen resistance, small thermal expansion coefficient, unique high hardness and density, far beyond the other similar products, the use of hard Alloy tube abrasion resistance stronger.

    Tungsten Carbide Nozzle application:

    • Abrasive Waterjet

    • Dry Blasting

    • Wet Blasting

    • Suction Blast

    • Mirco Abrasive

    Straight Bore And Venture Bore Tungsten Carbide Nozzle For Abrasive Water Jet


    Parameters
    Straight Bore And Venture Bore Tungsten Carbide Nozzle For Abrasive Water Jet

    NO.

    model

    ΦD(mm)

    Φd1(mm)

    L(mm)

    θ°

    а°

    1

    6.35*1.02*76.2

    6.35

    1.02

    76.2

    40

    28

    2

    6.35*0.76*76.2

    6.35

    0.76

    76.2

    40

    28

    3

    6.35*0.91*76.2

    6.35

    0.91

    76.2

    40

    28

    4

    6.35*1.02*101.6

    6.35

    1.02

    101.6

    40

    28

    5

    6.35*0.76*101.6

    6.35

    0.76

    101.6

    40

    28

    6

    7.14*1.02*76.2

    7.14

    1.02

    76.2

    40

    28

    7

    7.14*0.76*76.2

    7.14

    0.76

    76.2

    40

    28

    8

    7.14*0.91*76.2

    7.14

    0.91

    76.2

    40

    28

    9

    9.45*1.02*76.2

    9.45

    1.02

    76.2

    40

    28

    10

    9.45*0.76*76.2

    9.45

    0.76

    76.2

    40

    28

    11

    9.43*1.02*76.2

    9.43

    1.02

    76.2

    40

    28

    12

    9.43*0.76*76.2

    9.43

    0.76

    76.2

    40

    28

    13

    9.45*1.02*79

    9.45

    1.02

    79.0

    40

    28

    14

    9.45*0.76*79

    9.45

    0.76

    79.0

    40

    28

    15

    9.45*1.02*101.6

    9.45

    1.02

    101.6

    40

    28

    16

    9.45*0.76*101.6

    9.45

    0.76

    101.6

    40

    28

    17

    9.45*1.02*120

    9.45

    1.02

    120.0

    40

    28

    18

    9.45*0.76*120

    9.45

    0.76

    120.0

    40

    28

    19

    7.14*1.02*101.6

    7.14

    1.02

    101.6

    40

    28

    20

    7.14*0.76*101.6

    7.14

    0.76

    101.6

    40

    28

    21

    7.14*0.89*101.6

    7.14

    0.89

    101.6

    40

    28

    22

    7.14*0.91*101.6

    7.14

    0.91

    101.6

    40

    28

    23

    7.14*1.02*120

    7.14

    1.02

    120.0

    40

    28

    24

    7.14*0.76*120

    7.14

    0.76

    120.0

    40

    28

    25

    8.0*1.02*101.6

    8.00

    1.02

    101.6

    40

    28

    26

    8.0*0.76*101.6 Grooved sand pipe

    8.00

    0.76

    101.6

    40

    28


    Details
