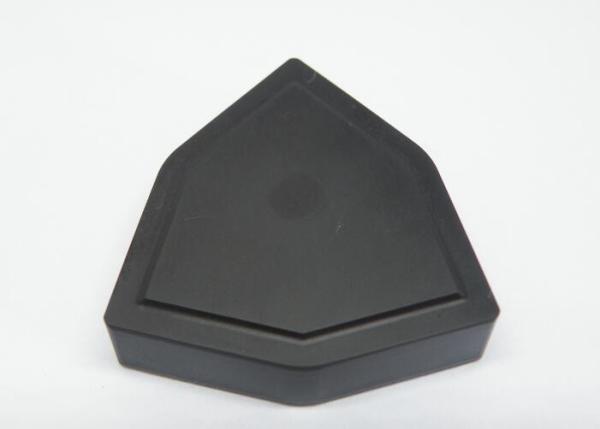

Cemented Carbide Tool Inserts / Carbide Turning Inserts Anti
Corrosion
Carbide Tool Inserts Description:
Carbide Tool Inserts are manufactured in a variety of shapes, sizes
and thicknesses. The shape can be round to maximize edge strength,
diamond-shaped to allow a sharp point to cut fine features, square,
or even octagonal to increase the number of separate edges that can
be applied as one edge after another wears out.
VKD has plenty of chip breakers to choose which cover the
application range from steel, iron cast, stainless steel, aluminum,
heat resistant alloy, etc. Those chip breakers can replace the
relative ones of , KORLOY, TAEGUTEC, MITSUBISHI, SUMITOMO,
TUNGALOY, KROCERA, DIJET, ISCAR etc. DON'T HESITATE TO CONTACT
SUPPLER TO GET MORE DETAILS!
Carbide Tool Inserts Application:
| Insert Application |
| Finishing | Universal | Roughing |
| Hard and Wear resistant | Wear Resistant and Tough | Tough and Impact Resistant |
| PVD and CVD Coating | PVD and CVD Coating | PVD and CVD Coating |
| Small Nose radius | Medium Nose Radius | Large Nose Radius |
| Light Honed Edge | Medium Honed Cutting Edge | Heavy Honed Cutting Edge |
| Small Chipbreaker | Medium Chipbreaker | Large Chip Breaker |
No. | Grade | Grade description | Grade(Competitors) |
1 | YBC152 | CVD coated P10–P20 carbide grade for finishing to medium operation
of steel and casting steel. Outstanding performance under higher
cutting speed and temperature with excellent wear resistance. | GC4315(), E6020(MITSUBISHI), T9125(TUNGALOY) |
2 | YB6315 | CVD coating grade combining nano dioxygen gradient transition
techniques and crystal nucleus pre-insertion techniques. | GC4315(), T9115(TUNGALOY) |
3 | YBC252 | CVD coated P20–P35 carbide grade for medium operation to roughing
of steel and casting steel. Optimal performance of wear resistance
and toughness for a wide application field. | GC4325(),E6020(MITSUBISHI),T9125(TUNGALOY) |
4 | YBD102 | CVD coated K05–K20 carbide substrate. Optimized for medium
operation of cast iron, special nodular cast iron and hard steel at
high cutting speed. | UC5115(MITSUBISHI) |
5 | YBD152 | CVD coated K10–K25 carbide substrate. Optimized for medium to
roughing operation of cast iron. Good wear resistance and toughness
at higher cutting speed. | UC5115(MITSUBISHI) |
6 | YBD152C | Thick Al2O3 CVD coated K05–K25 carbide substrate. Optimized for
medium to roughing operation of cast iron.Higher wear resistance
and toughness at higher cutting speed in combination with TC chip
breaker. | UC5115(MITSUBISHI) |
7 | YB7315 | CVD coated K10–K25 carbide substrate. Optimized for medium to
roughing operation of cast iron. Improved wear resistance and
toughness at high cutting speed. | UC5115(MITSUBISHI), WAK20() |
8 | YBM153 | CVD coated M10–M25 carbide grade for fnishing to medium application
in stainless steel. High wear resistance and capability against
plasctic deformation at higher cutting speed. | |
9 | YBM253 | CVD coated M15–M35 carbide grade for medium to roughing operation
in stainless steel with wide application field. High wear
resistance and capability against plasctic deformation at higher
cutting speed. | |
10 | YBG202 | PVD coated M10–M25/P10–P30 carbide substrate for finishing to
medium application of stainless steel and steel (milling). Good
wear resistance in a wide application field. | |
11 | YBG205 | PVD multilayer coated M20–M40/S15–S25/P10–P30 carbide substrate for
finishing to medium application of stainless steel, super alloy and
steel (milling). Good wear resistance and thermal stability in a
wide application field. | VP15TF(MITSUBISHI) |
12 | YB9320 | PVD multilayer coated M10–M25/P10–P30 carbide substrate for
finishing to medium application of stainless steel, super alloy and
steel (grooving/milling).Optimized coating stability for higher
wear resistance and thermal stability in a wide application field. | |
13 | YNT251 | Uncoated P10–P25 cermet grade for fine finishing to medium
operation of steel and stainless steel. Good wear resistance and
toughness. Suitable also in light interrupted cut. | |
... | ... | DON'T HESITATE TO CONTACT US TO GET MORE DETAILS! | ... |
