Tungsten Carbide Mechanical Seal Ring / Flat Tungsten Ring
Dimensions Customized
Production Description
1.Tungsten carbide mold is in high precision,the tolerance can
according yours.
2.For the shape,size,material etc. are made by customers' needs and
requirements.
3. It has many advantages such as Wear resistant, Heat resistant
and Corrosion resista and so on.

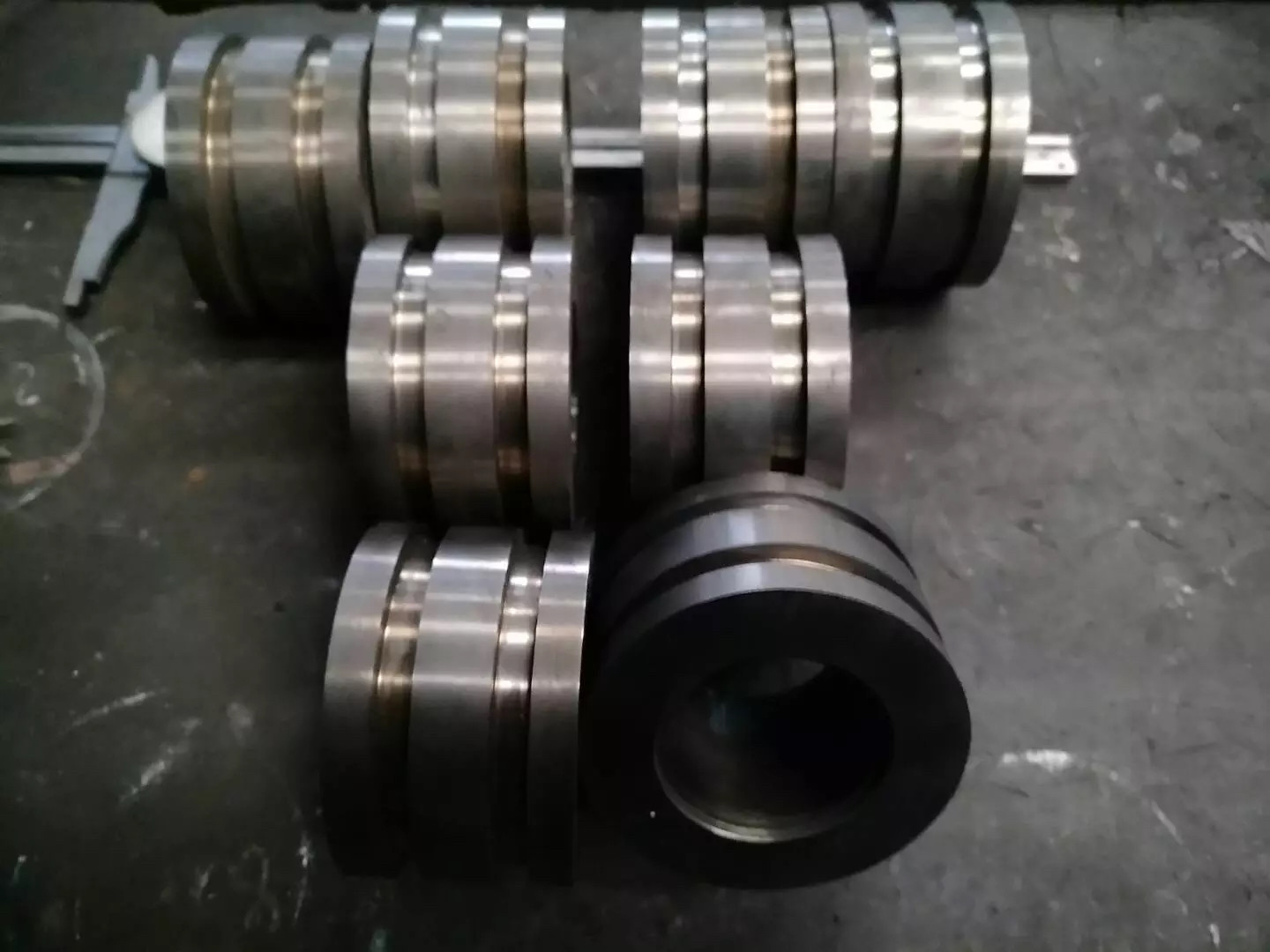

Product characters of carbide roller ring
Virgin raw material, fine processing, high precision, diamond
polishing, wear resistance and long service life.
Outer surface is as sintered, inner surface is crowned and diamond
polished to 10 micro and no lines and steps to be seen. Make sure
no scratches when wires passing through the guides.
Carbide wire guide is made of tungsten carbide for its extremely
hard and wear-resistant features, with sophisticated equipment for
precision grinding and polishing, coupled with advanced production
and processing technology, the inner and the outer diameter of the
hole and tolerance R at less than 0.01mm, the surface roughness
over the trough reached Ra 0.025 and above, it requires high
hardness, smooth surface in use to reduce injury and other enameled
wire
| Grade | Chemical
composition | Mechanical properties | Physical properties |
|
Co+Ni
%
| WC
% | Hardness
HRA | Transveres rupture
strength
(Sample B)
MPa | Compressive
Strength
MPa
| Young's
modulus of
elasticty
KN/mm2 | Density
g/cm3 | Thermal
conductivity
Cal/cm sec/℃
|
|
|
|
| YGH20 | 10 | 90 | ≧86.0 | ≧2500 | 3500 | 560 | 14.2-14.5 | 0.2 |
| YGH25 | 12 | 88 | ≧84.0 | ≧2300 | 3400 | 550 | 14.0-14.3 | 0.21 |
| YGH30 | 15 | 85 | ≧83.5 | ≧2520 | 3300 | 540 | 13.8-14.2 | 0.2 |
| YGH40 | 18 | 82 | ≧83.0 | ≧2570 | 3200 | 500 | 13.4-13.9 | 0.19 |
| YGH45 | 20 | 80 | ≧82.0 | ≧2570 | 3100 | 480 | 13.3-13.9 | 0.18 |
| YGH55 | 26 | 74 | ≧81.0 | ≧2570 | 3000 | 450 | 12.6-13.2 | 0.17 |
| YGR20 | 10 | 90 | ≧85.0 | ≧2400 | 3400 | 550 | 14.2-14.8 | 0.2 |
| YGR25 | 12.5 | 87.5 | ≧83.0 | ≧2270 | 3300 | 540 | 14.0-14.3 | 0.22 |
| YGR30 | 15 | 85 | ≧83.0 | ≧2360 | 3200 | 530 | 13.8-14.3 | 0.2 |
| YGR40 | 18 | 82 | ≧82.0 | ≧2400 | 3200 | 430 | 13.5-13.9 | 0.2 |
| YGR45 | 20 | 80 | ≧80.5 | ≧2250 | 3000 | 480 | 13.4-13.9 | 0.18 |
| YGR55 | 25 | 75 | ≧79.0 | ≧2400 | 2800 | 420 | 12.9-13.4 | 0.17 |
| YGR60 | 30 | 70 | ≧78.5 | ≧2200 | 2600 | 300 | 12.6-13.1 | 0.16 |
| Grade | Recommended applications |
| YGH20 | Maximum hardness ,excellent wear resistance in the series.Used in
the last 1-2 stands of good high speed line mills for rolling
common and hard bars. |
| YGH25 | Higher wear resistance,moderate impact resistance in the
series.Used in the last 1-3 stands of good high speed line mills
for rolling common and hard bars. |
| YGH30 | Moderate wear resistance and impact resistance,good for general
purposes.Used in the last 1-4 stands of finish rolling mills. |
| YGH40 | Best for general purposes.Used in the front stands of good mills
and in the rear stands of common mills. |
| YGH45 | Used in the first and second stands of finish rolling mills and in
the stands of prefinish rolling mills.For every stand of the
rolling lines for low speed rolling,low precision and unstable
operation. |
| YGH55 | Maxmum binder content in YGH series,good toughness and crack
resistance.Used in the stands of perfinish rolling mills and for
rolling screw thead steel |
| Grade | Recommended application |
|
| YGR20 | High wear resistance and corrosion resistance.Used in the last 1-2
stands of finish rolling mills. |
|
| YGR25 | High wear resistance and corrosion resistance.Used in the last
1-3stands of finish rolling mills. |
|
| YGR30 | Good toughness,wear resistance,corrosion resistance and crack
resistance.Used in the middie and rear stands of finish rolling
mills. |
|
| YGR40 | Good toughness and thermal crack resistance,dood for general
purposes.Used in the most stands of finish rolling mills and in the
rear stands of common mills. |
|
| YGR45 | Good toughness and thermal crack resistance,Used in the front
stands of finish rolling mills. |
|
| YGR55 | Good impact resistance.Used in the stands of prefinish rolling
mills for hot rolling screw thread steel bars and they, can be
machined with turning and milling. |
|
| YGR60 | Good impact resistance and toughness. Used for hot rolling screw
thread steel bars and in the first and second stands of prefinish
rolling mills. |
|
The allowable deviation of carbide roll rings
Radial runoutofgroove ≤ 0.013mm
Radial runout of periphery ≤0.01 3mm
End face runout ≤ 0.02mm
End face planeness ≤ 0 .01mm
End face parallelism ≤ 0.01mm
Innerholecylindericit ≤ 0.01mm
Roughness of carbide rolls
inner hole roughness 0.4 u m
periphery roughness0.8 u m
end face roughness 0.4 u m
