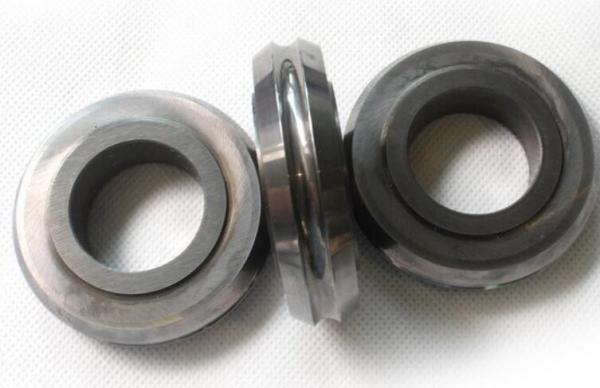

    High Strength Tungsten Carbide Roll Rings Various Type ISO 9001 Certified

    Ask Lasest Price
    Brand Name : VKD
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5tons/month
    Delivery Time : 15-20workmonth
    Model Number : Various
    • Product Details
    • Company Profile

    High Strength Tungsten Carbide Roll Rings Various Type ISO 9001 Certified

    High Strength Tungsten Carbide Roll Rings Various Type ISO 9001 Certified


    Recommended Grade:


    GradeChemical CompositionMechanical Properties
    WC(%)Co+Ni+Cr(%)Density(g/cm³)Hardness (>=HRA)TRS (>=MPA)
    YGH30851514.0284.92700

    Other grades would be recommended according to your requirements.


    Dimension


    SizeDiameter(mm)Bore(mm)Height(mm)
    CR-125*82*151258215
    CR-140.8*90*151409015
    CR-145*95*151459515
    CR-145.8*90*151459015
    CR-150*90*151509015
    CR-150*95*151509515
    CR-180*125*1818012518

    Finished size(mm)


    Radial run-out of grooveRadial run-out of peripheryEnd face runoutSurface parallelismInner hole cylindricity
    0.0130.0130.010.010.01

    Finished size with the tolerance(mm):


    ODToleranceIDToleranceHTolerance
    <=1251<=900.0/+0.02<=20-1
    >125~1801>90~950.0/+0.02>20-1
    >180~2501>950.0/+0.02-----1
    >2501-----0.0/+0.02------1
