1- 4 Flute Carbide End Mill , HRC 60/65/68 Milling Cutters End Mill
For Stainless Steel

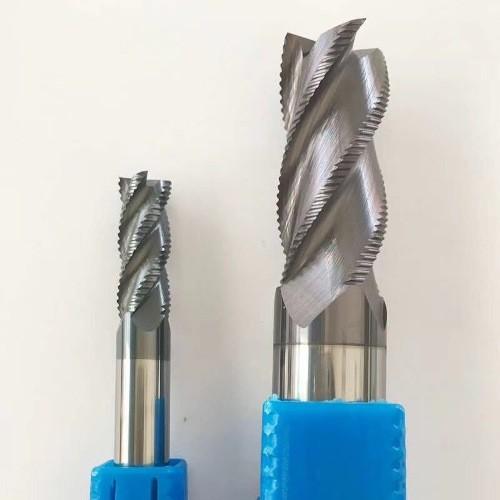

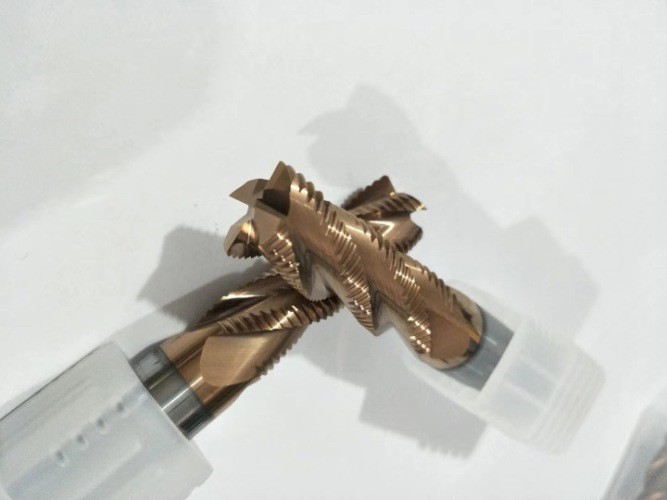

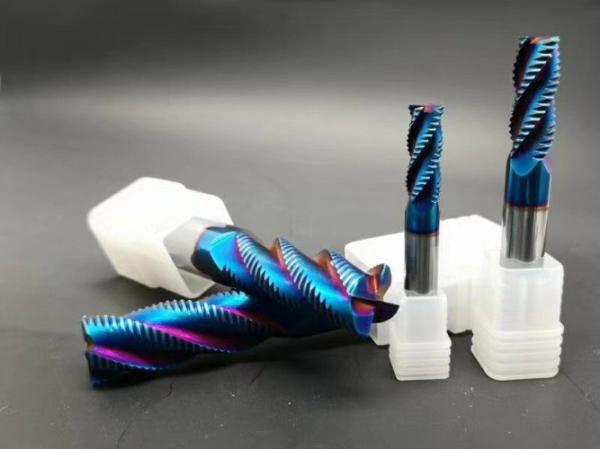

Wave edge end mill Features:
1. Suitable for steels & cast iron
2. High performance alcr series coating,high temperature resistance
and high wear resistance.
3. Adapt to several kinds of cooling conditions, for example oil
mist, water, oil, air cooling.
Wave edge end Mill Tool material composition:
1. Physical Properties:
a. Hardness greater than or equal to 92.6 HRA;
b. Density greater than or equal to 14.4g/cm³;
c. TRS greater than or equal to 3800 N/mm²;
d. Free of ETA phase condition;
e. No contamination by other materials;
f. Porosity = A02/ B00 / C00 ;
g. Uniform and consistent grain size. No grain size can be larger
than specified.
h. Chromium carbide grain growth inhibitor only.
2. All the tools of production, coatings are used in Germany,
Switzerland, processing equipment;
| SIZE | D | d | H | L | Z |
| AL-3W-D6.0 | 6 | 6 | 16 | 50 | 3 |
| AL-3W-D8.0 | 8 | 8 | 20 | 60 | 3 |
| AL-3W-D10.0 | 10 | 10 | 25 | 75 | 3 |
| AL-3W-D12.0 | 12 | 12 | 30 | 75 | 3 |
| AL-3W-D16.0 | 16 | 16 | 45 | 100 | 3 |
| AL-3W-D20.0 | 20 | 20 | 45 | 100 | 3 |
| SIZE | D | d | H | L | Z |
| GM-4W-D6.0 | 6 | 6 | 16 | 50 | 4 |
| GM-4W-D7.0 | 7 | 8 | 20 | 60 | 4 |
| GM-4W-D8.0 | 8 | 8 | 20 | 60 | 4 |
| GM-4W-D9.0 | 9 | 10 | 22 | 75 | 4 |
| GM-4W-D10.0 | 10 | 10 | 25 | 75 | 4 |
| GM-4W-D11.0 | 11 | 12 | 26 | 75 | 4 |
| GM-4W-D12.0 | 12 | 12 | 30 | 75 | 4 |
| GM-4W-D16.0 | 16 | 16 | 45 | 100 | 4 |
| GM-4W-D20.0 | 20 | 20 | 45 | 100 | 4 |
Tool material composition:
1. Physical Properties:
a. Hardness greater than or equal to 94 HRA;
b. Density greater than or equal to 14.6g/cm³;
c. TRS greater than or equal to 4100 N/mm²;
d. Free of ETA phase condition;
e. No contamination by other materials;
f. Porosity = A00/ B00 / C00 ;
g. Uniform and consistent grain size. No grain size can be larger
than specified.
h. Chromium carbide grain growth inhibitor only.
2. All the tools of production, coatings are used in Germany,
Switzerland, processing equipment;
Coating:
Universal High Performance Coating AlCrSiN
Characteristics and Function
1,Productivity increase due to significantly higher cutting speed
and feed for applications in a wide range of
materials.Sighificantly enhanced productivity.
2,Particular design of structure brings good balance between
toughness,thermo-shock stability and residual stress.
Literal statement:
The structure of Iphone 8 is used 316L stainless steel. This
material is more difficult to cut than the 304 stainless steel.
Especially the suppliers of Apple Inc. use MIM processing of small
accessories, the previous endmills has been unable to meet their
needs. Our team has adopted special ultra-fine grain tungsten
carbide, special spiral angle, special cutting edge design and Nano
AlCrSinN, the product has a perfect sucess, and has won high praise
from FOXCNN and MiYa.
Features:
Suitable for rough milling, semi-finishing and finishing of
stainless steel (<280HB).
Design for the small depth/large width in face milling, large
depth/small width in side milling, less than 0.3D in shallow
slotting.
Water soluable or oil based are the best cooling methods.
Square / flat end mill specification
SQUARE/FLAT End Mills offered are solid carbide mill finish that is suitable for metal
options like aluminum, non-ferrous, non-metallic metal. Featuring
precision engineered flute design that provides for superior chip
removal at high feed rates, these end mills also allows for
achieving lower cutting forces as well as enhanced balance and
finish support. These also help in providing enhanced functional
control as well as in bringing reduction in chatter.
Features:
- Solid carbide mill finish that is suitable for metal options like
aluminum, non-ferrous, non-metallic metal
- Precision engineered flute design that provides for superior chip
removal at high feed rates
- Allows for achieving lower cutting forces
- Features enhanced balance and finish support
- Helps in enhancing control as well as in bringing reduction in
chatter
- Comes with exceptional performance support
Welcome your inquiry.
