tungsten carbide button bits manufacture wholesale KK60 tungsten
carbide button bits for oil and rock drilling

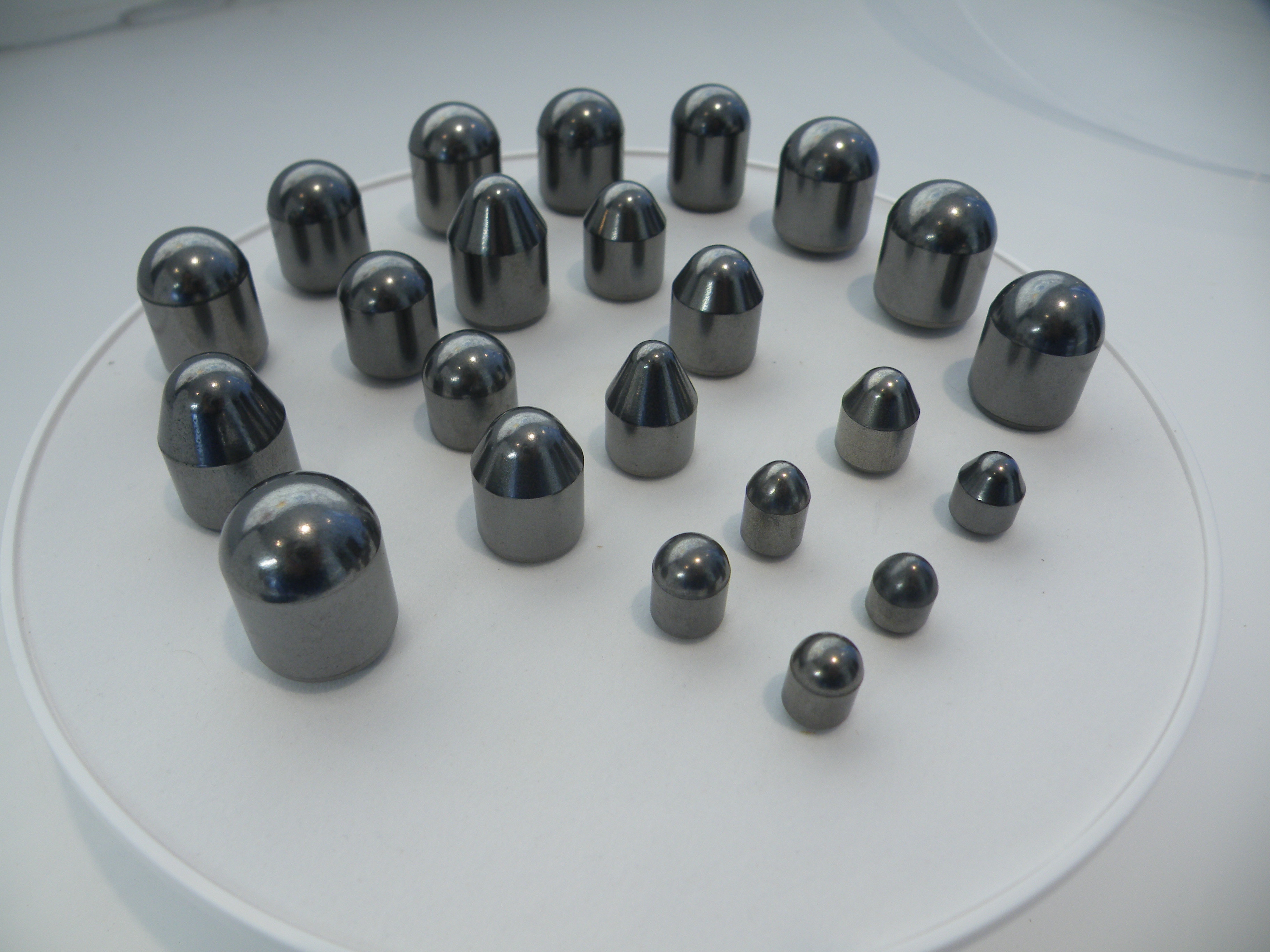

round head Tungsten Carbide button insert tips bits For mining
KK60-KK60H
- 100% virgin raw materials, stable chemical properties, long life circle.
- High hardness, good hardness, excellent wear-resistance.
- Various sizes and full types available
- Products can be customized upon requirement
| Type | Dimensions(mm) |
|
| Diameter(D) | Height(H) | Radius(SR) |
| SQ08212AS15 | 8.2 | 12 | 4.2 |
|
| SQ09213AS17 | 9.2 | 13 | 4.6 |
|
| SQ10214S20 | 10.2 | 14 | 5.2 |
|
| SQ11215S21 | 11.2 | 15 | 6 |
|
| SQ12217S18 | 12.2 | 17 | 6.6 |
|
| SQ13219S20 | 13.2 | 19 | 6.7 |
|
| SQ14322S10 | 14.3 | 22 | 7.2 |
|
| SQ16324AS30 | 16.3 | 24 | 8.8 |
|
| SQ18327S33 | 18.3 | 27 | 9.2 |
|
| SQ19225D20 | 19.2 | 25 | 9.6 |
|
| Grade | Density g/cm3 | Hardness HRA | T.R.S MPa | Performance & application recommend | Approx grades in China | ISO |
| MK4 | 15.1 | 90.0 | 1800 | Mainly used as small buttons for percussion bits to cut soft and
medium hard formations | YG4C | K01-K05 |
| MK6 | 14.9 | 90.5 | 2600 | For coring crowns, electric coal drill bits, coal cutting picks,
oil cone bits and scraping knife bits, used in geological
prospecting, coal mining and oil well boring | YK05 KK06H | K10 |
| MK8 | 14.7 | 89.8 | 2800 | Suitable for coring crowns, electric coal drill bits, coal cutting
picks, cone drill bits and scraping knife bits, used in geological
prospecting, coal mining and oil well boring | YG8 | K20 |
| MK10 | 14.7 | 89.0 | 2700 | Mostly used as the buttons of small and medium sized percussion
bits and as the inserts of rotary prospecting bits to cut soft and
medium hard formations. | YG18C ZD15 | K20 |
| MK15 | 14.6 | 88.0 | 2750 | Suitable to strips, conical buttons for rotary
percussion-resistant, geological prospecting buttons, cut soft and
medium hard formations | YK15 YG9C | K20-K30 |
| MK20 | 14.5 | 87.5 | 2800 | Largely for the inserts and buttons of percussion bits and tricone
bits to cut medium-hard, hard, and very hard formations. | YK20 YG10C | K30 |
| Other grades and sizes can be offered as per customers'
requirements |
Grade of Good abrasion resistance for round head Tungsten Carbide button insert tips bits For mining
KK60-KK60H
Grades are exclusive grade we developed for rolling machine.
High impact toughness, high abrasion resistance, stable physical
ability, the appearance of fine workman ship etc.
Production Process of Good abrasion resistance for HPGR tungsten
cemented carbide stud tips pins
To ensure the quality and the requirements of the drawings can be
met before mass production
1st:, Start to prepare the RTP powder as per customer’s requirement
with our wet-grinding machine
2nd, Before mass production, do a trial pressing and sintering
using mould,
3rd, Check the appearances and the sizes of the samples with
micrometer, projectors etc.
Test process of Good abrasion resistance for round head Tungsten Carbide button insert tips bits For mining
KK60-KK60H
1st,Mass production, press the raw materials to shape blanks,
Notes: all carbide stud pins blanks must be passed by semi finished
inspection
2nd,Sinter blanks to finish (HIP) and finished products inspection,
Notes:10 sets of vacuum sintering furnace and 2set of HIP in the
factory ensure the best quality and production capacity.
3rd,Cleaning/tumbling to make the carbide stud pins clean and nice surface.
Packing of Good abrasion resistance for round head Tungsten Carbide button insert tips bits For mining
KK60-KK60H
step 1, wrapped carbide stud pinsr in paper to avoid carbide stud pins be broken
step 2, put the carbide stud pins in inner small carton box
step 3, put the inner box into outer carton and fill the carton
with foamed plastic
step 4, wrap the carton with packaging tape
Welcome your inquiry.
