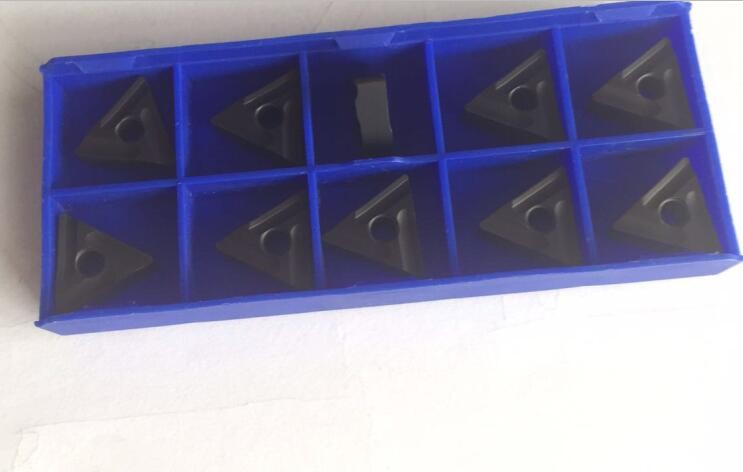

High Working Efficiency Tungsten Carbide Inserts Triangle Shape For
Roughing Steel
Description:
VKD has plenty of chip breakers to choose which cover the
application range from steel, iron cast, stainless steel, aluminum,
heat resistant alloy, etc. Those chip breakers can replace the
relative ones of , KORLOY, TAEGUTEC, MITSUBISHI, SUMITOMO,
TUNGALOY, KROCERA, DIJET, ISCAR etc. DON'T HESITATE TO CONTACT
SUPPLER TO GET MORE DETAILS!
Feature advantage:
1. Factory price with 100% raw material quality.
2. Free sample available for your testing.welcome to your trial
order for our cnc carbide inserts to test our quality and service.
3. Special size inserts can be customized.manufacture of carbide
insert according to cutomer-provided documentation.
Application:
1. Scientifically designed structure ensures good material
performance and long tool life. Refined production management
assures the stability of product quality.
2. With high re-positioning precision, the insert is compatible
with specially developed cemented carbide tool holders, which can
increase the capability of vibration resistance and improve
machining quality.
3. Special treatment on insert's surface can reduce the possibility
of chips adhering to the rake face of insert. Good performance of
chip breaking and chip flowing ensures improved surface quality of
workpiece, improves operation stability of inserts.
4. High wear resistance of cutting edge after special treatment.
5. High machining stability , High working efficiency
Chip breaker System
No. | Grade | Grade description | Grade(Competitors) |
1 | YBC152 | CVD coated P10–P20 carbide grade for finishing to medium operation
of steel and casting steel. Outstanding performance under higher
cutting speed and temperature with excellent wear resistance. | GC4315(), E6020(MITSUBISHI), T9125(TUNGALOY) |
2 | YB6315 | CVD coating grade combining nano dioxygen gradient transition
techniques and crystal nucleus pre-insertion techniques. | GC4315(), T9115(TUNGALOY) |
3 | YBC252 | CVD coated P20–P35 carbide grade for medium operation to roughing
of steel and casting steel. Optimal performance of wear resistance
and toughness for a wide application field. | GC4325(),E6020(MITSUBISHI),T9125(TUNGALOY) |
4 | YBD102 | CVD coated K05–K20 carbide substrate. Optimized for medium
operation of cast iron, special nodular cast iron and hard steel at
high cutting speed. | UC5115(MITSUBISHI) |
5 | YBD152 | CVD coated K10–K25 carbide substrate. Optimized for medium to
roughing operation of cast iron. Good wear resistance and toughness
at higher cutting speed. | UC5115(MITSUBISHI) |
6 | YBD152C | Thick Al2O3 CVD coated K05–K25 carbide substrate. Optimized for
medium to roughing operation of cast iron.Higher wear resistance
and toughness at higher cutting speed in combination with TC chip
breaker. | UC5115(MITSUBISHI) |
7 | YB7315 | CVD coated K10–K25 carbide substrate. Optimized for medium to
roughing operation of cast iron. Improved wear resistance and
toughness at high cutting speed. | UC5115(MITSUBISHI), WAK20() |
8 | YBM153 | CVD coated M10–M25 carbide grade for fnishing to medium application
in stainless steel. High wear resistance and capability against
plasctic deformation at higher cutting speed. | |
9 | YBM253 | CVD coated M15–M35 carbide grade for medium to roughing operation
in stainless steel with wide application field. High wear
resistance and capability against plasctic deformation at higher
cutting speed. | |
10 | YBG202 | PVD coated M10–M25/P10–P30 carbide substrate for finishing to
medium application of stainless steel and steel (milling). Good
wear resistance in a wide application field. | |
11 | YBG205 | PVD multilayer coated M20–M40/S15–S25/P10–P30 carbide substrate for
finishing to medium application of stainless steel, super alloy and
steel (milling). Good wear resistance and thermal stability in a
wide application field. | VP15TF(MITSUBISHI) |
12 | YB9320 | PVD multilayer coated M10–M25/P10–P30 carbide substrate for
finishing to medium application of stainless steel, super alloy and
steel (grooving/milling).Optimized coating stability for higher
wear resistance and thermal stability in a wide application field. | |
13 | YNT251 | Uncoated P10–P25 cermet grade for fine finishing to medium
operation of steel and stainless steel. Good wear resistance and
toughness. Suitable also in light interrupted cut. | |
... | ... | DON'T HESITATE TO CONTACT US TO GET MORE DETAILS! | ... |
Welcome your inquiry.
